XERUN AXE PLUS R3
XERUN AXE PLUS R3

XERUN AXE PLUS R3

The Hobbywing AXE PLUS R3 ESC is a high-performance electronic speed controller designed for rock crawlers and other off-road RC vehicles. It is part of the AXE series, which is known for its precision control, smooth power delivery, and smart technology integration. Here are some key features of the AXE PLUS R3:

Key Features:

  1. FOC (Field Oriented Control) Technology:

    • This enables incredibly smooth and precise control over your motor, even at low speeds. It’s ideal for rock crawling where smooth throttle response is crucial.

  2. Built-in Bluetooth for Programming:

    • The ESC comes with a built-in Bluetooth module, allowing for easy programming and tuning via the HW Link mobile app (both iOS and Android). This eliminates the need for extra programming cards or connecting cables.

  3. Smart Power Management:

    • The ESC features intelligent power management, ensuring efficient battery usage and protection from over-discharge, overheating, and overloading.

  4. Ultra-Smooth Throttle Response:

    • The throttle response is incredibly smooth, which makes it perfect for delicate operations like crawling over rocks or tricky terrain.

  5. Waterproof and Dustproof:

    • It’s IP67 rated, making it capable of performing in harsh conditions such as mud, water, and dirt, which is typical for off-road environments.

  6. Integrated BEC:

    • The ESC comes with a high-performance BEC (Battery Elimination Circuit) that can support 6V/7.4V adjustable voltage, ideal for high-power servos.

  7. Plug-and-Play:

    • Designed to work seamlessly with Hobbywing AXE motors, this system provides perfect plug-and-play functionality for ease of use and installation.

  8. Real-Time Data Display:

    • Through the HW Link app, you can get real-time data such as motor temperature, current draw, and voltage, which is useful for making on-the-fly adjustments.

  9. Adjustable Drag Brake:

    • The drag brake can be precisely tuned, which is important for rock crawlers that need controlled braking during descents.

The AXE PLUS R3 ESC is a great choice for hobbyists who are serious about RC rock crawling or off-road driving, as it offers superior control, programmability, and durability. It’s also a favorite among competitive drivers due to its performance in extreme conditions.



Product Number
  30113201
Type
Scale 1/10th,1/8th,1/6th
Brushed/Brushless BL
Sensored/Sensorless SD
Waterproof Waterproof
Specifications
Cont./Peak Current 135A/600A
Input Voltage 2-6S Lipo
BEC BEC Output Switch Mode 6V/7.4V/8.4V @6A
Wires & Connectors
Input Wires Black-12AWG-265mm*1 Red-12AWG-265mm*1
Output Wires NO
Input Connectors XT60
Output Connectors No
Fan
Size 25*25*10mm
Voltage Range 6-8.4V
Powered by BEC
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Not Supported
LCD G2 Program Box Not Supported
LCD PRO Not Supported
OTA Programmer Not Supported
Program Port Built-in bluetooth
Data Recording
Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware
Firmware Upgrade Supported
Size & Weight
Size 49.5*37.9*32.8mm(Height with fan)
Weight 126.5g(Including the weight of input line)
Applications
Motors Only support XERUN AXE R2/R3 motor
Vehicles 1/10th,1/8th,1/6th Rock Crawler
KV Rating/T Count AXE R2 540/540L/550
AXE R3 4274



Overview

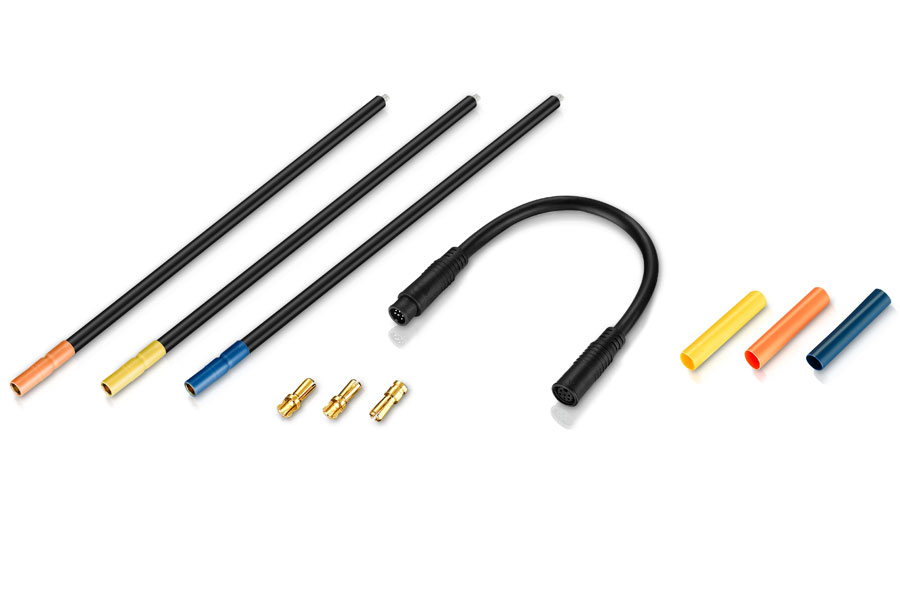

This sensor extension wire is applicable to the situation that the sensor wire
between the motor and ESC is not long enough after mounting the AXE R2/R3 power
system combo onto the chassis. And it’s available in two versions: 120mm & 300mm.

Stock Spare Parts

Items


Product
1

PN:30850306
Product Name: AXE R2 Extended Wire Set-150mm
Specifications:150mm in length(w/o two connectors)
Applications: Special Extension Wire (150mm) for AXE Brushless Power System
2

PN:30850307
Product Name: AXE R2 Extended Wire Set-300MM
Specifications:300mm in length(w/o two connectors)
Applications: Special Extension Wire (300mm) for AXE Brushless Power System
